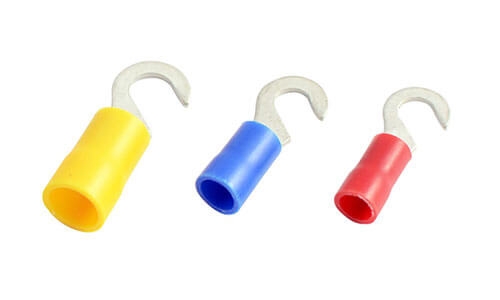

VINYL-INSULATED HOOK TERMINALS
  • VINYL-INSULATED HOOK TERMINALS
VINYL-INSULATED HOOK TERMINALS
VINYL-INSULATED HOOK TERMINALS

VINYL-INSULATED HOOK TERMINALS

Product Description
  • VH1-3.5 ~ VH5-8
  • Insulation Material: Vinyl(PVC)
  • Terminal Material: Copper
  • Plating： Tin
Add to Inquiry Cart

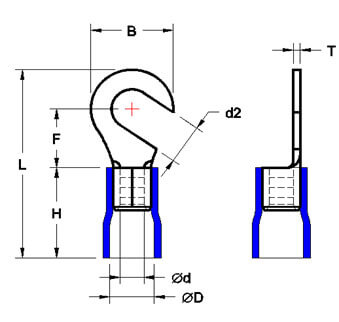

VH TYPE
WIRE RANGE A.W.G. m㎡ITEM NO.Stud SizeDimensions (mm)
AmericanMetricd2BFLHØdØDT
22-16 A.W.G.
0.5-1.5 mm²		 VH1-3.5 #6 3.5 3.7 6.6 6.3 19.6 10.0 1.7 4.2 0.75
VH1-4 #8 4.0 4.3 8.0 7.0 21.0
VH1-5 #10 5.0 5.3 8.0 7.0 21.0
VH1-6 1/4 6.0 6.4 11.6 11.1 26.9
16-14 A.W.G.
1.5-2.5 mm²		 VH2-3.5 #6 3.5 3.7 6.6 6.3 19.6 10.0 2.3 4.6 0.8
VH2-4 #8 4.0 4.3 8.5 7.8 22.0
VH2-5 #10 5.0 5.3 9.5 7.3 22.0
VH2-6 1/4 6.0 6.4 12.0 11.0 27.0
12-10 A.W.G.
4-6 mm²		 VH5-3.5 #6 3.5 3.7 7.2 5.9 22.5 13.0 3.4 6.6 1.0
VH5-4 #8 4.0 4.3 9.5 8.3 26.0
VH5-5 #10 5.0 5.3 9.5 8.3 26.0
VH5-6 1/4 6.0 6.4 12.0 10.5 29.5
VH5-8 5/16 8.0 8.4 15.0 13.7 34.2
