Nylon Fully(Square) Insulated Female Disconnect(Easy Entry)

Nylon Fully(Square) Insulated Female Disconnect(Easy Entry)

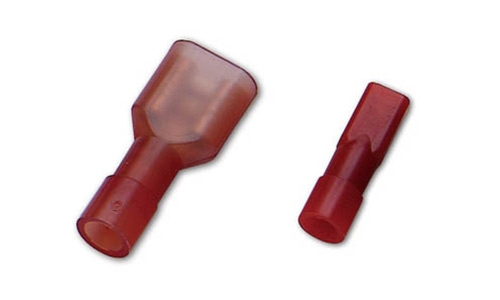

Product Description
  • NO.LNSD1-2.8F5C ~ LNSD2-6.3FC
  • Insulation Material: Nylon
  • Terminal Material: Brass
  • Plating: TIN

Specification download

LNSD-PDF.pdf
Nylon Fully(Square) Insulated Female Disconnect(Easy Entry)
WIRE RANGE
A.W.G. Mm²
ITEM
NO.

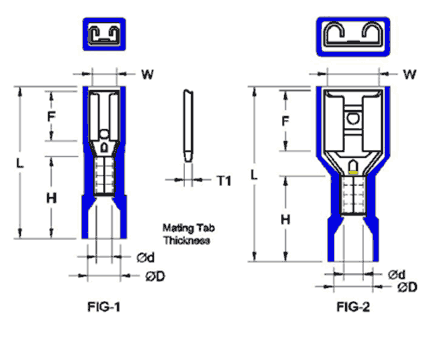

Dimensions (mm)Material Tab ThicknessFIG
WFLHØdØDT1
22-16
A.W.G.

0.5-1.5 mm²
LNSD1-2.8F5C 3.2 6.4 19.5 11.0 1.7 4.2 0.5 1
LNSD1-2.8F8C 0.8 1
LNSD1-6.3FC 6.6 7.8 22.0 2
16-14
A.W.G.

1.5-2.5 mm²
LNSD2-6.3FC 6.6 7.8 22.0 11.0 2.3 5.0 0.8 2
