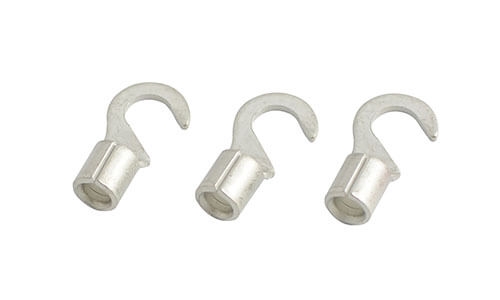

NON-INSULATED HOOK TERMINALS (BRAZED SEAM)
  • NON-INSULATED HOOK TERMINALS (BRAZED SEAM)
NON-INSULATED HOOK TERMINALS (BRAZED SEAM)
NON-INSULATED HOOK TERMINALS (BRAZED SEAM)

NON-INSULATED HOOK TERMINALS (BRAZED SEAM)

Product Description
  • NO.H1-3NB ~ H5-8NB
  • Terminal Material: Copper
  • Plating： TIN
Add to Inquiry Cart

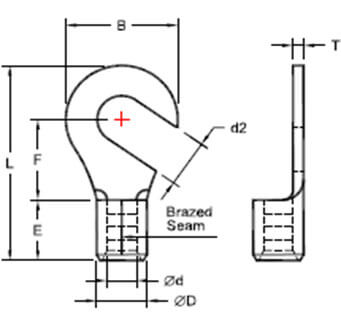

H TYPE
WIRE RANGE A.W.G. m㎡ITEM NO.Stud SizeDimensions (mm)
AmericanMetricd2BFLHØdØDT
22-16 A.W.G.
0.5-1.5 mm²		 H1-3.5NB #6 3.5 3.7 6.6 6.3 14.6 5.0 1.7 3.4 0.75
H1-4NB #8 4.0 4.3 8.0 7.0 16.0
H1-5NB #10 5.0 5.3 8.0 7.0 16.0
H1-6NB 1/4 6.0 6.4 11.6 11.1 21.9
16-14 A.W.G.
1.5-2.5 mm²		 H2-3.5NB #6 3.5 3.7 6.6 6.3 14.6 5.0 2.3 4.1 0.8
H2-4NB #8 4.0 4.3 8.5 7.8 17.0
H2-5NB #10 5.0 5.3 9.5 7.3 17.0
H2-6NB 1/4 6.0 6.4 12.0 11.0 22.0
12-10 A.W.G.
4-6 mm²		 H5-3.5NB #6 3.5 3.7 7.2 5.9 15.5 6.0 3.4 5.6 1.0
H5-4NB #8 4.0 4.3 9.5 8.3 19.0
H5-5NB #10 5.0 5.3 9.5 8.3 19.0
H5-6NB 1/4 6.0 6.4 12.0 10.5 22.5
H5-8NB 5/16 8.0 8.4 15.0 13.7 27.2
