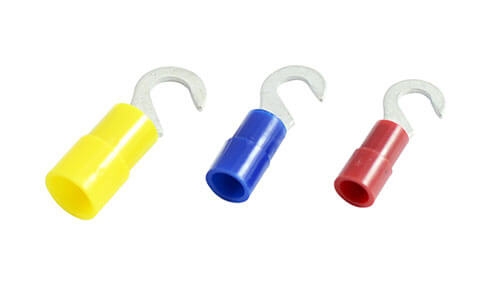

NYLON-INSULATED HOOK TERMINALS (EASY-ENTRY)
  • NYLON-INSULATED HOOK TERMINALS (EASY-ENTRY)
NYLON-INSULATED HOOK TERMINALS (EASY-ENTRY)
NYLON-INSULATED HOOK TERMINALS (EASY-ENTRY)

NYLON-INSULATED HOOK TERMINALS (EASY-ENTRY)

Product Description
  • VH1-3.5 ~ VH5-8
  • Insulation Material: Vinyl(PVC)
  • Terminal Material: Copper
  • Plating： Tin
Add to Inquiry Cart
ENH TYPE
WIRE RANGE A.W.G. m㎡ITEM NO.Stud SizeDimensions (mm)
AmericanMetricd2BFLHØdØDT
22-16 A.W.G.
0.5-1.5 mm²		 ENH1-3.5 #6 3.5 3.7 6.6 6.3 20.1 10.5 1.7 4.1 0.75
ENH1-4 #8 4.0 4.3 8.0 7.0 21.5
ENH1-5 #10 5.0 5.3 8.0 7.0 21.5
ENH1-6 1/4 6.0 6.4 11.6 11.1 27.4
16-14 A.W.G.
1.5-2.5 mm²		 ENH2-3.5 #6 3.5 3.7 6.6 6.3 20.6 11.0 2.3 4.5 0.8
ENH2-4 #8 4.0 4.3 8.5 7.8 23.0
ENH2-5 #10 5.0 5.3 9.5 7.3 23.0
ENH2-6 1/4 6.0 6.4 12.0 11.0 28.0
12-10 A.W.G.
4-6 mm²		 ENH5-3.5 #6 3.5 3.7 7.2 5.9 22.5 13.0 3.4 6.5 1.0
ENH5-4 #8 4.0 4.3 9.5 8.3 26.0
ENH5-5 #10 5.0 5.3 9.5 8.3 26.0
ENH5-6 1/4 6.0 6.4 12.0 10.5 29.5
ENH5-8 5/16 8.0 8.4 15.0 13.7 34.2
