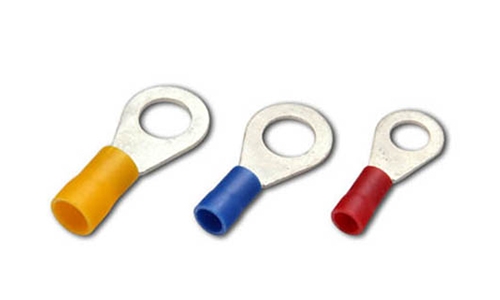

PVC絕緣DIN46237德規圓型端子

PVC絕緣DIN46237德規圓型端子

產品描述
  • 編號:VDR2.5-1〜VDR12-6
  • 絕緣材料:聚氯乙烯(PVC)
  • 端子材質:銅
  • 電鍍:錫

附加檔

VDR-PDF.pdf
PVC Insulated DIN46237 Ring Terminals
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
MetricØd1a1a2CØd2d3Ød4LS
22-16
A.W.G.

0.5-1.5 mm²
VDR2.5-1 2.5 1.6 5.0 10.0 4.0 2.7 6.0 4.2 16.0 0.8
VDR3-1 3 3.2 6.0 16.0
VDR3.5-1 3.5 3.7 6.0 16.0
VDR4S-1 4 4.3 7.0 16.0
VDR4-1 4 4.3 8.0 17.0
VDR5S-1 5 5.3 8.0 17.0
VDR5-1 5 5.3 10.0 18.0
VDR6S-1 6 6.5 10.0 18.0
VDR6-1 6 6.5 11.0 21.0
VDR8-1 8 8.4 14.0 22.0
16-14
A.W.G.

1.5-2.5 mm²
VDR3-2.5 3 2.3 5.0 10.0 4.5 3.2 6.0 4.6 16.0 0.8
VDR3.5-2.5 3.5 3.7 6.0 16.0
VDR4S-2.5 4 4.3 6.8 16.0
VDR4-2.5 4 4.3 8.0 17.0
VDR5S-2.5 5 5.3 8.0 17.0
VDR5-2.5 5 5.3 10.0 19.0
VDR6S-2.5 6 6.5 10.0 19.0
VDR6-2.5 6 6.5 11.0 21.0
VDR8-2.5 8 8.4 14.0 22.0
VDR10-2.5 10 10.5 18.0 25.0
12-10
A.W.G.

2.5-6 mm²
VDR4-6 4 3.6 6.0 13.0 6.0 4.3 8.0 6.6 21.0 1.0
VDR5-6 5 5.3 10.0 22.0
VDR6-6 6 6.5 11.0 23.0
VDR8-6 8 8.4 14.0 26.0
VDR10-6 10 10.5 18.0 28.0
VDR12-6 12 13.0 18.0 28.0
