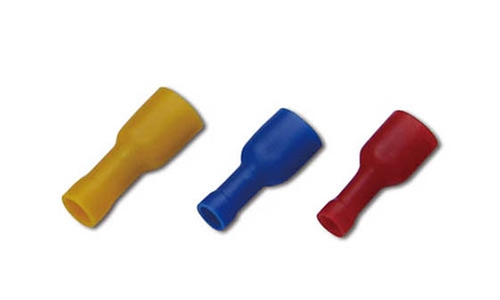

PVC全絕緣平插式(全包)母端連接器(易進式銅管)

PVC全絕緣平插式(全包)母端連接器(易進式銅管)

產品描述
  • 編號:LVD1-2.8F5C〜LVD5-6.3FC
  • 絕緣材料:聚氯乙烯(PVC)
  • 端子材質:青銅
  • 套管:銅套
  • 電鍍:錫

附加檔

LVD-F-C.pdf
PVC Fully Insulated Female Lug(Double Crimp)
WIRE RANGE
A.W.G. mm²
ITEM
NO.

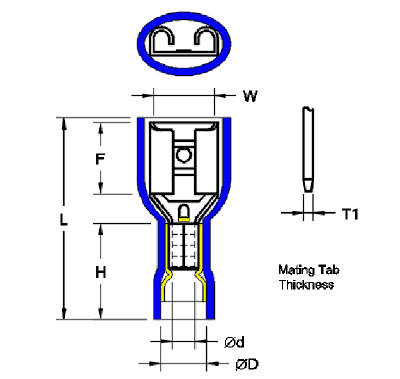

Dimensions (mm)Material Tab Thickness
WFLHØdØDT1
22-16
A.W.G.


0.5-1.5 mm²
LVD1-2.8F5C 3.2 6.4 19.4 10.5 1.7 4.1 0.5
LVD1-2.8F8C 3.2 6.4 19.4 0.8
LVD1-4.8F5C 5.0 6.4 20.0 0.5
LVD1-4.8F8C 5.0 6.4 20.0 0.8
LVD1-6.3FC 6.6 7.8 22.0 0.8
16-14
A.W.G.

1.5-2.5  mm²
LVD2-2.8F5C 3.2 6.4 19.4 10.5 2.3 4.9 0.5
LVD2-2.8F8C 3.2 6.4 19.4 0.8
LVD2-4.8F5C 5.0 6.4 20.0 0.5
LVD2-4.8F8C 5.0 6.4 20.0 0.8
LVD2-6.3FC 6.6 7.8 22.0 0.8
12-10
A.W.G.

4-6 mm²
LVD5-6.3FC 6.6 7.8 24.5 13.0 3.4 6.7 0.8
