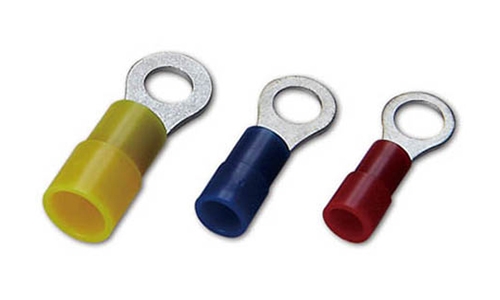

尼龍絕緣圓型端子(易進式)

尼龍絕緣圓型端子(易進式)

產品描述
  • 編號:ENR1-3〜ENR5-12
  • 絕緣材料:尼龍
  • 端子材質:銅
  • 電鍍:錫
Nylon Insulated Ring Terminals(Easy Entry)
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
AmericanMetricØd2BFLHØdØDT
22-16
A.W.G.

0.5-1.5  mm²
ENR1-3 #4 3.0 3.2 5.5 4.8 18.5 10.5 1.7 4.1 0.75
ENR1-3.5S #6 3.5 3.7 5.5 4.8 18.5
ENR1-3.5 #6 3.5 3.7 6.6 6.3 20.1
ENR1-4S #8 4.0 4.3 6.6 6.3 20.1
ENR1-4 #8 4.0 4.3 8.0 7.0 22.0
ENR1-5 #10 5.0 5.3 8.0 7.0 22.0
ENR1-6 1/4 6.0 6.4 11.6 11.1 27.9
ENR1-8 5/16 8.0 8.4 11.6 11.1 27.9
ENR1-10 3/8 10.0 10.5 13.6 13.9 31.7
ENR1-12 1/2 12.0 13.0 19.0 16.0 36.6
16-14
A.W.G.

1.5-2.5  mm²
ENR2-3 #4 3.0 3.2 6.6 4.3 18.6 11.0  2.3  4.5  0.8
ENR2-3.5S #6 3.5 3.7 6.6 4.3 18.6
ENR2-3.5 #6 3.5 3.7 6.6 6.3 20.6
ENR2-4S #8 4.0 4.3 6.6 6.3 20.6
ENR2-4 #8 4.0 4.3 8.5 7.8 23.0
ENR2-5S #10 5.0 5.3 8.5 7.8 23.0
ENR2-5 #10 5.0 5.3 9.5 7.3 23.0
ENR2-6 1/4 6.0 6.4 12.0 11.0 28.0
ENR2-8 5/16 8.0 8.4 12.0 11.0 28.0
ENR2-10 3/8 10.0 10.5 13.6 13.9 31.7
ENR2-12 1/2 12.0 13.0 19.0 16.0 36.6
12-10
A.W.G.

4-6  mm²
ENR5-3.5 #6 3.5 3.7 7.2 5.9 22.5 13.0 3.4 6.5 1.0
ENR5-4S #8 4.0 4.3 7.2 5.9 22.5
ENR5-4 #8 4.0 4.3 9.5 8.3 26.0
ENR5-5 #10 5.0 5.3 9.5 8.3 26.0
ENR5-6 1/4 6.0 6.4 12.0 10.5 29.5
ENR5-8 5/16 8.0 8.4 15.0 13.7 34.2
ENR5-10 3/8 10.0 10.5 15.0 13.7 34.2
ENR5-12 1/2 12.0 13.0 19.2 16.0 38.6
