尼龍絕緣平插式(半包)母端連接器

尼龍絕緣平插式(半包)母端連接器

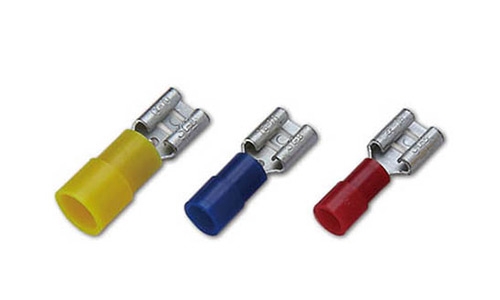

產品描述
  • 編號:END1-2.8F5〜END5-9.5F
  • 絕緣材料:尼龍
  • 端子材質:青銅
  • 電鍍:錫

附加檔

END-F-PDF.pdf
Nylon Insulated Female Lug(Easy Entry)
WIRE RANGE
A.W.G.   mm²
ITEM
NO.

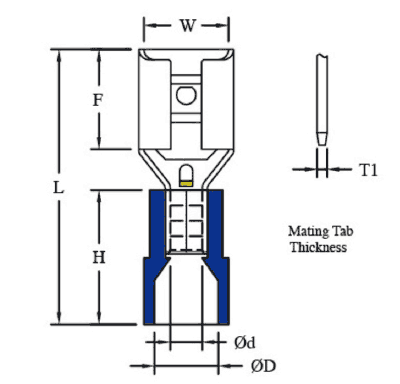

Dimensions (mm)Material Tab Thickness
WFLHØdØDT1
22-16
A.W.G.

0.5-1.5  mm²
END1-2.8F5 3.2 6.4 19.4 11.0 1.7 4.1 0.5
END1-2.8F8 3.2 6.4 19.4 0.8
END1-4.8F5 5.0 6.4 20.0 0.5
END1-4.8F8 5.0 6.4 20.0 0.8
END1-5.2F5 5.7 5.9 20.0 0.5
END1-5.2F8 5.7 5.9 20.0 0.8
END1-6.3F 6.6 7.8 22.0 0.8
END1-8F 8.2 10.0 24.0 0.8
16-14
A.W.G.

1.5-2.5  mm²
END2-2.8F5 3.2 6.4 19.4 11.0 2.3 4.5 0.5
END2-2.8F8 3.2 6.4 19.4 0.8
END2-4.8F5 5.0 6.4 20.0 0.5
END2-4.8F8 5.0 6.4 20.0 0.8
END2-5.2F5 5.7 5.9 20.0 0.5
END2-5.2F8 5.7 5.9 20.0 0.8
END2-6.3F 6.6 7.8 22.0 0.8
END2-8F 8.2 10.0 24.0 0.8
12-10
A.W.G.

4-6 mm²
END5-6.3F 6.6 7.8 24.0 13.0 3.4 6.5 0.8
END5-9.5F 10.0 12.0 29.0 1.2
