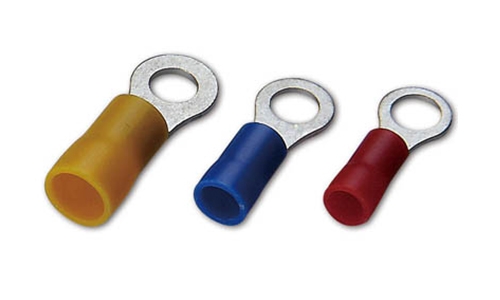

PVC絕緣圓型端子(易進式)

PVC絕緣圓型端子(易進式)

產品描述
  • 專利產品
  • 編號:VR1-3E〜VR5-12E
  • 絕緣材料:聚氯乙烯(PVC)
  • 材質:銅
  • 電鍍:錫

附加檔

VR-E-PDF.pdf
PVC Insulated Ring Terminals(Easy Entry)(New Patened)
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
AmericanMetricØd2BFLHØdØDT
 22-16
A.W.G.

0.5-1.5  mm²
VR1-3E #4 3.0 3.2 5.5 4.8 18 10.0 1.7 4.2 0.75
VR1-3.5SE #6 3.5 3.7 5.5 4.8 18
VR1-3.5E #6 3.5 3.7 6.6 6.3 20.1
VR1-4SE #8 4.0 4.3 6.6 6.3 20.1
VR1-4E #8 4.0 4.3 8.0 7.0 21.5
VR1-5E #10 5.0 5.3 8.0 7.0 21.5
VR1-6E 1/4 6.0 6.4 11.6 11.1 27.4
VR1-8E 5/16 8.0 8.4 11.6 11.1 27.4
VR1-10E 3/8 10.0 10.5 13.6 13.9 31.2
VR1-12E 1/2 12.0 13.0 19.0 13.9 35.6
16-14
A.W.G.

1.5-2.5 mm²
VR2-3E #4 3.0 3.2 6.6 4.3 18.6 10.0 2.3 4.6 0.8
VR2-3.5SE #6 3.5 3.7 6.6 4.3 18.6
VR2-3.5E #6 3.5 3.7 6.6 6.3 20.6
VR2-4SE #8 4.0 4.3 6.6 6.3 20.6
VR2-4E #8 4.0 4.3 8.5 7.8 23.0
VR2-5SE #10 5.0 5.3 8.5 7.8 23.0
VR2-5E #10 5.0 5.3 9.5 7.3 23.0
VR2-6E 1/4 6.0 6.4 12.0 11.0 28.0
VR2-8E 5/16 8.0 8.4 12.0 11.0 28.0
VR2-10E 3/8 10.0 10.5 13.6 13.9 31.7
VR2-12E 1/2 12.0 13.0 19.0 13.9 35.6
12-10
A.W.G.

4-6 mm²
VR5-3.5E #6 3.5 3.7 7.2 5.9 22.5 13.0 3.4 6.6 1.0
VR5-4SE #8 4.0 4.3 7.2 5.9 22.5
VR5-4E #8 4.0 4.3 9.5 8.3 26.0
VR5-5E #10 5.0 5.3 9.5 8.3 26.0
VR5-6E 1/4 6.0 6.4 12.0 10.5 29.5
VR5-8E 5/16 8.0 8.4 15.0 13.7 34.2
VR5-10E 3/8 10.0 10.5 15.0 13.7 34.2
VR5-12E 1/2 12.0 13.0 19.2 16.0 38.6
