PVC絕緣圓型端子(易進式銅管)

PVC絕緣圓型端子(易進式銅管)

產品描述

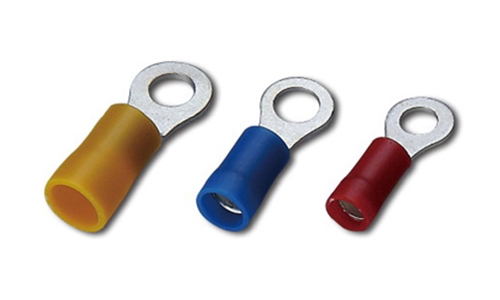

  • 編號:VR1-3C〜VR5-12C
  • 絕緣材料:聚氯乙烯(PVC)
  • 端子材質:銅
  • 套管:銅套
  • 電鍍:錫

附加檔

VR-C-PDF.pdf
VINYL-INSULATED RING TERMINALS,(DOUBLE CRIMP)
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
AmericanMetricØd2BFLHØdØDT
 22-16
A.W.G.

0.5-1.5 mm²
VR1-3C #4 3.0 3.2 5.5 4.8 18.0 10.5 1.7 4.5 0.75
VR1-3.5SC #6 3.5 3.7 5.5 4.8 18.0
VR1-3.5C #6 3.5 3.7 6.6 6.3 20.1
VR1-4SC #8 4.0 4.3 6.6 6.3 20.1
VR1-4C #8 4.0 4.3 8.0 7.0 21.5
VR1-5C #10 5.0 5.3 8.0 7.0 21.5
VR1-6C 1/4 6.0 6.4 11.6 11.1 27.4
VR1-8C 5/16 8.0 8.4 11.6 11.1 27.4
VR1-10C 3/8 10.0 10.5         13.9 31.2
VR1-12C 1/2 12.0 13.0 19.0 16.0 36.1
16-14
A.W.G.

1.5-2.5  mm²
VR2-3C #4 3.0 3.2 6.6 4.3 18.1 10.5 2.3 5.0 0.8
VR2-3.5SC #6 3.5 3.7 6.6 4.3 18.1
VR2-3.5C #6 3.5 3.7 6.6 6.3 20.1
VR2-4SC #8 4.0 4.3 6.6 6.3 20.1
VR2-4C #8 4.0 4.3 8.5 7.8 22.5
VR2-5SC #10 5.0 5.3 8.5 7.8 22.5
VR2-5C #10 5.0 5.3 9.5 7.3 22.5
VR2-6C 1/4 6.0 6.4 12.0 11.0 27.5
VR2-8C 5/16 8.0 8.4 12.0 11.0 27.5
VR2-10C 3/8 10.0 10.5 13.6 13.9 31.2
VR2-12C 1/2 12.0 13.0 19.0 16.0 36.1
12-10
A.W.G.

4-6  mm²
VR5-3.5C #6 3.5 3.7 7.2 5.9 22.5 13.0 3.4 6.7 1.0
VR5-4SC #8 4.0 4.3 7.2 5.9 22.5
VR5-4C #8 4.0 4.3 9.5 8.3 26.0
VR5-5C #10 5.0 5.3 9.5 8.3 26.0
VR5-6C 1/4 6.0 6.4 12.0 10.5 29.5
VR5-8C 5/16 8.0 8.4 15.0 13.7 34.2
VR5-10C 3/8 10.0 10.5 15.0 13.7 34.2
VR5-12C 1/2 12.0 13.0 19.2 16.0 38.6
