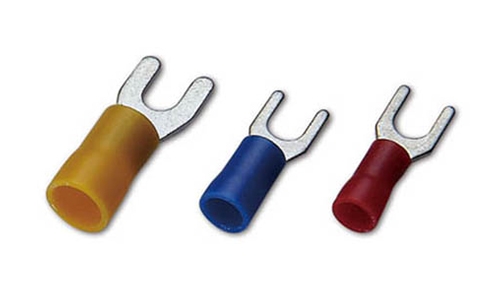

PVC絕緣叉型(Y型)端子

PVC絕緣叉型(Y型)端子

產品描述
  • 編號:NO.VY1-3〜VY5-8
  • 絕緣材料:聚氯乙烯(PVC)
  • 端子材質:銅
  • 電鍍:錫

附加檔

VY-PDF.pdf
PVC Insulated Fork Terminals
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
AmericanMetricd2BFLHØdØDT
22-16
A.W.G.

0.5-1.5 mm²
VY1-3 #4 3.0 3.2 5.8 6.3 21.0 10.0 1.7 4.2 0.75
VY1-3.5S #6 3.5 3.7 5.8 6.3 21.0
VY1-3.5 #6 3.5 3.7 6.4 6.3 21.0
VY1-4S #8 4.0 4.3 6.4 6.3 21.0
VY1-4 #8 4.0 4.3 7.2 6.3 21.0
VY1-4L #8 4.0 4.3 8.1 7.0 21.7
VY1-5S #10 5.0 5.3 8.1 7.0 21.7
VY1-5 #10 5.0 5.3 9.5 7.0 21.7
VY1-6S 1/4 6.0 6.4 9.5 7.0 21.7
VY1-6 1/4 6.0 6.4 12.0 11.0 27.4
16-14
A.W.G.

1.5-2.5  mm²
VY2-3 #4 3.0 3.2 5.8 6.5 21.2 10.0 2.3 4.6 0.8
VY2-3.5S #6 3.5 3.7 5.8 6.5 21.2
VY2-3.5 #6 3.5 3.7 6.4 6.5 21.2
VY2-4S #8 4.0 4.3 6.4 6.5 21.2
VY2-4 #8 4.0 4.3 7.2 6.5 21.2
VY2-4L #8 4.0 4.3 8.5 7.3 22.0
VY2-5S #10 5.0 5.3 8.5 7.3 22.0
VY2-5 #10 5.0 5.3 9.5 7.0 21.7
VY2-6S 1/4 6.0 6.4 9.5 7.0 21.7
VY2-6 1/4 6.0 6.4 12.0 11.0 27.4
14-12
A.W.G.

2.5-4 mm²
VY3-3.5 #6 3.5 3.7 8.0 7.0 25.3 13.0 2.9 6.3 1.0
VY3-4 #8 4.0 4.3 8.0 7.0 25.3
VY3-5 #10 5.0 5.3 8.0 7.0 25.3
VY3-6 1/4 6.0 6.4 12.0 9.1 28.5
12-10
A.W.G.

4-6  mm²
VY5-3.5S #6 3.5 3.7 7.2 7.5 26.0 13.0 3.4 6.6 1.0
VY5-3.5 #6 3.5 3.7 8.3 7.5 26.0
VY5-4S #8 4.0 4.3 8.3 7.5 26.0
VY5-4 #8 4.0 4.3 9.5 7.5 25.7
VY5-5 #10 5.0 5.3 9.5 7.5 25.7
VY5-6 1/4 6.0 6.4 12.0 12.0 31.7
VY5-8 5/16 8.0 8.4 13.5 12.2 31.7
