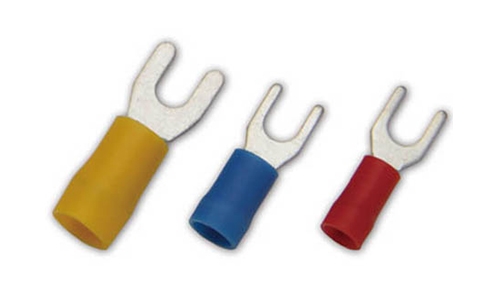

PVC絕緣叉型(Y型)端子(易進式銅管)

PVC絕緣叉型(Y型)端子(易進式銅管)

產品描述
  • 編號:NO.VY1-3C〜VY5-8C
  • 絕緣材料:聚氯乙烯(PVC)
  • 端子材質:銅
  • 套管:銅套
  • 電鍍:錫

附加檔

VY-C-PDF.pdf
PVC Insulated Fork Terminals(Double Crimp)
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud   SizeDimensions (mm)
AmericanMetricd2BFLHØdØDT
22-16
A.W.G.

0.5-1.5 mm²
VY1-3C #4 3.0 3.2 5.8 6.3 21.5 10.5 1.7 4.5 0.75
VY1-3.5SC #6 3.5 3.7 5.8 6.3 21.5
VY1-3.5C #6 3.5 3.7 6.4 6.3 21.5
VY1-4SC #8 4.0 4.3 6.4 6.3 21.5
VY1-4C #8 4.0 4.3 7.2 6.3 21.5
VY1-4LC #8 4.0 4.3 8.1 7.0 22.2
VY1-5SC #10 5.0 5.3 8.1 7.0 22.2
VY1-5C #10 5.0 5.3 9.5 7.0 22.2
VY1-6SC 1/4 6.0 6.4 9.5 7.0 22.2
VY1-6C 1/4 6.0 6.4 12.0 11.0 27.9
16-14
A.W.G.

1.5-2.5 mm²
VY2-3C #4 3.0 3.2 5.8 6.5 21.7 10.5 2.3 5.0 0.8
VY2-3.5SC #6 3.5 3.7 5.8 6.5 21.7
VY2-3.5C #6 3.5 3.7 6.4 6.5 21.7
VY2-4SC #8 4.0 4.3 6.4 6.5 21.7
VY2-4C #8 4.0 4.3 7.2 6.5 21.7
VY2-4LC #8 4.0 4.3 8.5 7.3 22.5
VY2-5SC #10 5.0 5.3 8.5 7.3 22.5
VY2-5C #10 5.0 5.3 9.5 7.0 22.2
VY2-6SC 1/4 6.0 6.4 9.5 7.0 22.2
VY2-6C 1/4 6.0 6.4 12.0 11.0 27.9
12-10
A.W.G.

4-6 mm²
VY5-3.5SC #6 3.5 3.7 7.2 7.5 26.0 13.0 3.4 6. 7 1.0
VY5-3.5C #6 3.5 3.7 8.3 7.5 26.0
VY5-4SC #8 4.0 4.3 8.3 7.5 26.0
VY5-4C #8 4.0 4.3 9.5 7.5 25.7
VY5-5C #10 5.0 5.3 9.5 7.5 25.7
VY5-6C 1/4 6.0 6.4 12.0 12.0 31.7
VY5-8C 5/16 8.0 8.4 13.5 12.2 31.7
