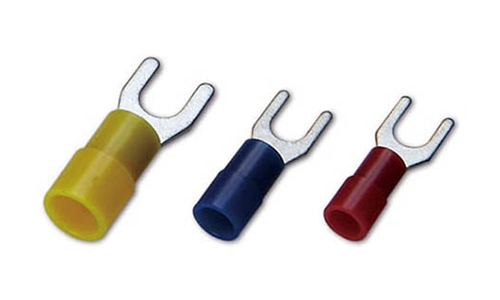

尼龍絕緣叉型(Y型)端子(易進式)

尼龍絕緣叉型(Y型)端子(易進式)

產品描述
  • 編號:NO.ENY1-3〜ENY5-8
  • 絕緣材料:尼龍
  • 端子材質:銅
  • 電鍍:錫

附加檔

ENY-PDF.pdf
Nylon Insulated Fork Terminals(Easy Entry)
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
AmericanMetricd2BFLHØdØDT
22-16
A.W.G.

0.5-1.5 mm²
ENY1-3 #4 3.0 3.2 5.8 6.3 22.0 10.5 1.7 4.1 0.75
ENY1-3.5S #6 3.5 3.7 5.8 6.3 22.0
ENY1-3.5 #6 3.5 3.7 6.4 6.3 22.0
ENY1-4S #8 4.0 4.3 6.4 6.3 22.0
ENY1-4 #8 4.0 4.3 7.2 6.3 22.0
ENY1-4L #8 4.0 4.3 8.1 7.0 22.7
ENY1-5S #10 5.0 5.3 8.1 7.0 22.7
ENY1-5 #10 5.0 5.3 9.5 7.0 22.7
ENY1-6S 1/4 6.0 6.4 9.5 7.0 22.7
ENY1-6 1/4 6.0 6.4 12.0 11.0 28.4
16-14
A.W.G.

1.5-2.5  mm²
ENY2-3 #4 3.0 3.2 5.8 6.5 22.2 11.0 2.3 4.5 0.8
ENY2-3.5S #6 3.5 3.7 5.8 6.5 22.2
ENY2-3.5 #6 3.5 3.7 6.4 6.5 22.2
ENY2-4S #8 4.0 4.3 6.4 6.5 22.2
ENY2-4 #8 4.0 4.3 7.2 6.5 22.2
ENY2-4L #8 4.0 4.3 8.5 7.3 23.0
ENY2-5S #10 5.0 5.3 8.5 7.3 23.0
ENY2-5 #10 5.0 5.3 9.5 7.0 22.7
ENY2-6S 1/4 6.0 6.4 9.5 7.0 22.7
ENY2-6 1/4 6.0 6.4 12.0 11.0 28.4
12-10
A.W.G.

4-6  mm²
ENY5-3.5S #6 3.5 3.7 7.2 7.5 26.0 13.0 3.4 6.5 1.0
ENY5-3.5 #6 3.5 3.7 8.3 7.5 26.0
ENY5-4S #8 4.0 4.3 8.3 7.5 26.0
ENY5-4 #8 4.0 4.3 9.5 7.5 25.7
ENY5-5 #10 5.0 5.3 9.5 7.5 25.7
ENY5-6 1/4 6.0 6.4 12.0 12.0 31.7
ENY5-8 5/16 8.0 8.4 13.5 12.2 31.7
