尼龍絕緣DIN46237德規圓型端子(易進式)

尼龍絕緣DIN46237德規圓型端子(易進式)

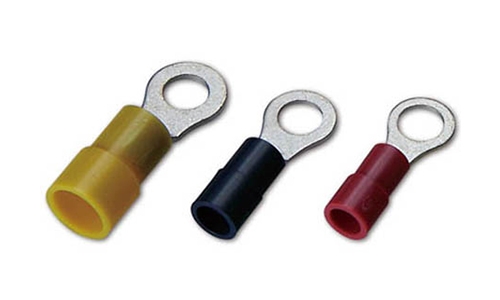

產品描述
  • 編號:ENDR2.5-1〜ENDR12-6
  • 絕緣材料:尼龍
  • 端子材質:銅
  • 電鍍:錫

附加檔

ENDR-PDF.pdf
Nylon Insulated DIN46237 Ring Terminals(Easy Entry)
WIRE RANGE
A.W.G. mm²
ITEM
NO.

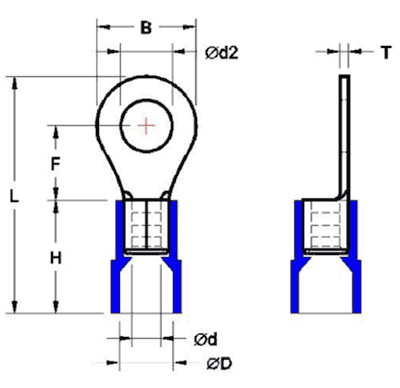

Stud SizeDimensions (mm)
MetricØd1a1a2CØd2d3ØdLS
22-16
A.W.G.

0.5-1.5 mm²
ENDR2.5-1 2.5 1.6 5.0 10.5 4.0 2.7 6.0 4.1 17.0 0.8
ENDR3-1 3 3.2 6.0 17.0
ENDR3.5-1 3.5 3.7 6.0 17.0
ENDR4S-1 4 4.3 7.0 17.0
ENDR4-1 4 4.3 8.0 18.0
ENDR5S-1 5 5.3 8.0 18.0
ENDR5-1 5 5.3 10.0 19.0
ENDR6S-1 6 6.5 10.0 19.0
ENDR6-1 6 6.5 11.0 22.0
ENDR8-1 8 8.4 14.0 23.0
16-14
A.W.G.

1.5-2.5 mm²
ENDR3-2.5 3 2.3 5.0 11.0 4.5 3.2 6.0 4.5 17.0 0.8
ENDR3.5-2.5 3.5 3.7 6.0 17.0
ENDR4S-2.5 4 4.3 6.8 17.0
ENDR4-2.5 4 4.3 8.0 18.0
ENDR5S-2.5 5 5.3 8.0 18.0
ENDR5-2.5 5 5.3 10.0 20.0
ENDR6S-2.5 6 6.5 10.0 20.0
ENDR6-2.5 6 6.5 11.0 22.0
ENDR8-2.5 8 8.4 14.0 23.0
ENDR10-2.5 10 10.5 18.0 26.0
12-10
A.W.G.

2.5-6 mm²
ENDR4-6 4 3.6 6.0 13.0 6.0 4.3 8.0 6.5 21.0 1.0
ENDR5-6 5 5.3 10.0 22.0
ENDR6-6 6 6.5 11.0 23.0
ENDR8-6 8 8.4 14.0 26.0
ENDR10-6 10 10.5 18.0 28.0
ENDR12-6 12 13.0 18.0 28.0
