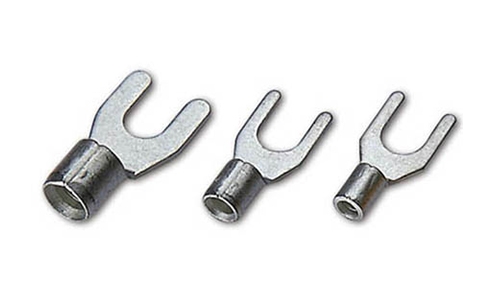

無絕緣叉型(Y型)焊接端子

無絕緣叉型(Y型)焊接端子

產品描述
  • 編號:NO.Y1-3NB〜Y14-8NB
  • 端子材質:銅
  • 電鍍:錫
Non-Insulated Fork Terminals(Brazed Seam)
WIRE RANGE
A.W.G. mm²
ITEM
NO.
Stud SizeDimensions (mm)
AmericanMetricØd2BFLEØdØDT
 22-16
A.W.G.

0.5-1.5  mm²
Y1-3NB #4 3.0 3.2 5.8 6.3 16.0 5.0 1.7 3.4 0.75
Y1-3.5SNB #6 3.5 3.7 5.8 6.3 16.0
Y1-3.5NB #6 3.5 3.7 6.4 6.3 16.0
Y1-4SNB #8 4.0 4.3 6.4 6.3 16.0
Y1-4NB #8 4.0 4.3 7.2 6.3 16.0
Y1-4LNB #8 4.0 4.3 8.1 7.0 16.7
Y1-5SNB #10 5.0 5.3 8.1 7.0 16.7
Y1-5NB #10 5.0 5.3 9.5 7.0 16.7
Y1-6SNB 1/4 6.0 6.4 9.5 7.0 16.7
Y1-6NB 1/4 6.0 6.4 12.0 11.0
16-14
A.W.G.

1.5-2.5  mm²
Y2-3NB #4 3.0 3.2 5.8 6.5 16.2 5.0 2.3 4.1 0.8
Y2-3.5SNB #6 3.5 3.7 5.8 6.5 16.2
Y2-3.5NB #6 3.5 3.7 6.4 6.5 16.2
Y2-4SNB #8 4.0 4.3 6.4 6.5 16.2
Y2-4NB #8 4.0 4.3 7.2 6.5 16.2
Y2-4LNB #8 4.0 4.3 8.5 7.3 17.0
Y2-5SNB #10 5.0 5.3 8.5 7.3 17.0
Y2-5NB #10 5.0 5.3 9.5 7.0 16.7
Y2-6SNB 1/4 6.0 6.4 9.5 7.0 16.7
Y2-6NB 1/4 6.0 6.4 12.0 11.0 22.4
14-12
A.W.G.

2.5-4  mm²
Y3-3.5NB #6 3.5 3.7 8.0 7.0 18.3 6.0 2.9 5.1 1.0
Y3-4NB #8 4.0 4.3 8.0 7.0 18.3
Y3-5NB #10 5.0 5.3 8.0 7.0 18.3
Y3-6NB 1/4 6.0 6.4 12.0 9.1 21.5
12-10
A.W.G.

4-6  mm²
Y5-3.5SNB #6 3.5 3.7 7.2 7.5 19.0 6.0 3.4 5.6 1.0
Y5-3.5NB #6 3.5 3.7 8.3 7.5 19.0
Y5-4SNB #8 4.0 4.3 8.3 7.5 19.0
Y5-4NB #8 4.0 4.3 9.5 7.5 18.7
Y5-5NB #10 5.0 5.3 9.5 7.5 18.7
Y5-6NB 1/4 6.0 6.4 12.0 12.0 24.7
Y5-8NB 5/16 8.0 8.4 13.5 12.2 24.7
8
A.W.G.

8  mm²
Y8-4NB #8 4.0 4.3 8.2 8.1 20.6 8.5 4.5 7.2 1.2
Y5-5SNB #10 5.0 5.3 9.0 8.1 20.6
Y8-5NB #10 5.0 5.3 10.5 8.1 20.8
Y8-6NB 1/4 6.0 6.4 10.8 8.6 22.5
6
A.W.G.

14  mm²
Y14-6NB 1/4 6.0 6.4 11.0 10.7 25.5 10.5 5.8 9.0 1.5
Y14-8NB 5/16 8.0 8.4 13.8 10.7 28.5
