無絕緣針型焊接端子

無絕緣針型焊接端子

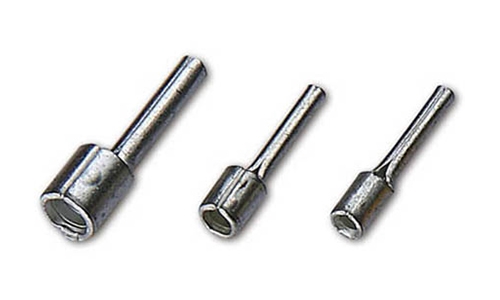

產品描述
  • 編號:NO.PT1-10NB〜PT95-25NB
  • 端子材質:銅
  • 電鍍:錫
Non-Insulated Pin Terminals(Brazed Seam)
WIRE RANGE
A.W.G. mm²

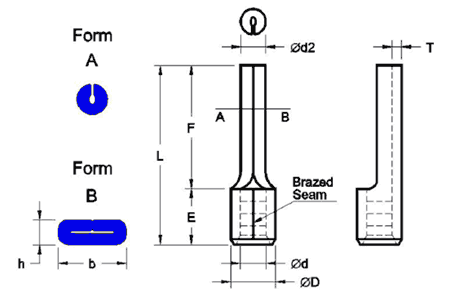

ITEM NO.Dimensions   (mm)Form
Ød2FLEØdØDhbT
22-16 A.W.G
0.5-1.5mm²
PT1-10NB 1.9 10.0 15.0 5.0 1.7 3.4     0.75 A
PT1NB 12.0 17.0
16-14
A.W.G
1.5-2.5 mm²
PT2-10NB 1.9 10.0 15.0 5.0 2.3 4.1     0.8 A
PT2NB 12.0 17.0
12-10 A.W.G
4-6 mm²
PT5NB 2.7 14.0 20.0 6.0 3.4 5.6     1.0 A
8 A.W.G
10 mm²
PT10-12NB   14.0 22.0 8.0 4.6 7.0 2.4 4.3 1.1 B
6 A.W.G
16 mm²
PT16-13NB   16.0 26.0 10.0 5.9 8.5 2.6 5.5 1.2 B
4 A.W.
G25 mm²
PT25-15NB   20.0 33.5 13.5 7.1 9.7 2.6 6.8 1.2 B
2 A.W.G
35 mm²
PT35-20NB   24.5 40.5 16.0 8.4 11.8 3.2 8.0 1.5 B
1/0 A.W.G
50 mm²
PT50-20NB   26.0 45.0 19.0 9.6 13.6 3.6 9.5 1.8 B
2/0 A.W.G
70 mm²
PT70-25NB   31.0 55.0 24.0 11.4 15.8 4.0 11.0 2.0 B
3/0 A.W.G
95 mm²
PT95-25NB   31.0 55.0 24.0 13.5 18.9 5.0 12.5 2.5 B
