絕緣熱縮收圓型端子(焊接)

絕緣熱縮收圓型端子(焊接)

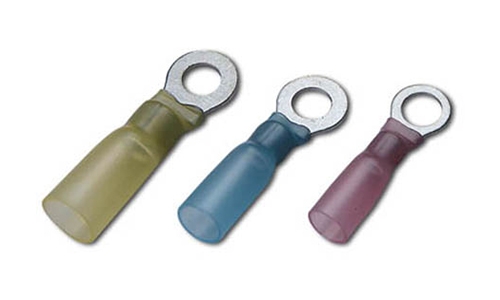

產品描述
  • 編號:HR1-3.5SNB-K〜HR5-12NB-K
  • 絕緣材料:聚烯烴高性能高防水熱收縮管
  • 端子材質:銅
  • 電鍍:錫

附加檔

HR-K-PDF.pdf
insulated heat shrinkable ring terminals (brazed seam)
WIRE RANGE
A.W.G. mm²
ITEM
NO.

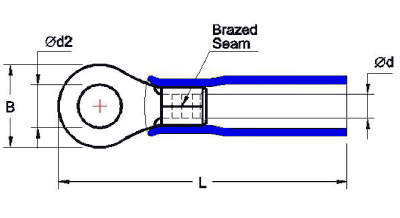

Stud SizeDimensions (mm)
AmericanMetricØd2BLØd
22-16
A.W.G.

0.5-1.5 mm²
HR1-3.5SNB-K #6 3.5 3.7 5.5 25.0 1.7
HR1-4NB-K #8 4.0 4.3 8.0 28.0
HR1-5NB-K #10 5.0 5.3 8.0 28.0
HR1-6NB-K 1/4 6.0 6.4 11.6 34.0
HR1-8NB-K 5/16 8.0 8.4 11.6 34.0
HR1-10NB-K 3/8 10.0 10.5 13.6 38.0
HR1-12NB-K 1/2 12.0 13.0 19.0 42.0
16-14
A.W.G.

1.5-2.5 mm²
HR2-3.5SNB-K #6 3.5 3.7 6.6 25.0 2.3
HR2-4NB-K #8 4.0 4.3 8.5 29.0
HR2-5NB-K #10 5.0 5.3 9.5 29.0
HR2-6NB-K 1/4 6.0 6.4 12.0 34.0
HR2-8NB-K 5/16 8.0 8.4 12.0 34.0
HR2-10NB-K 3/8 10.0 10.5 13.6 38.0
HR2-12NB-K 1/2 12.0 13.0 19.0 42.0
12-10
A.W.G.

4-6 mm²
HR5-4NB-K #8 4.0 4.3 9.5 33.0 3.4
HR5-5NB-K #10 5.0 5.3 9.5 33.0
HR5-6NB-K 1/4 6.0 6.4 12.0 37.0
HR5-8NB-K 5/16 8.0 8.4 15.0 41.0
HR5-10NB-K 3/8 10.0 10.5 15.0 41.0
HR5-12NB-K 1/2 12.0 13.0 19.2 46.0
